Home Products Hardware Product Frame Grabber PCIe Series

PCIe Series

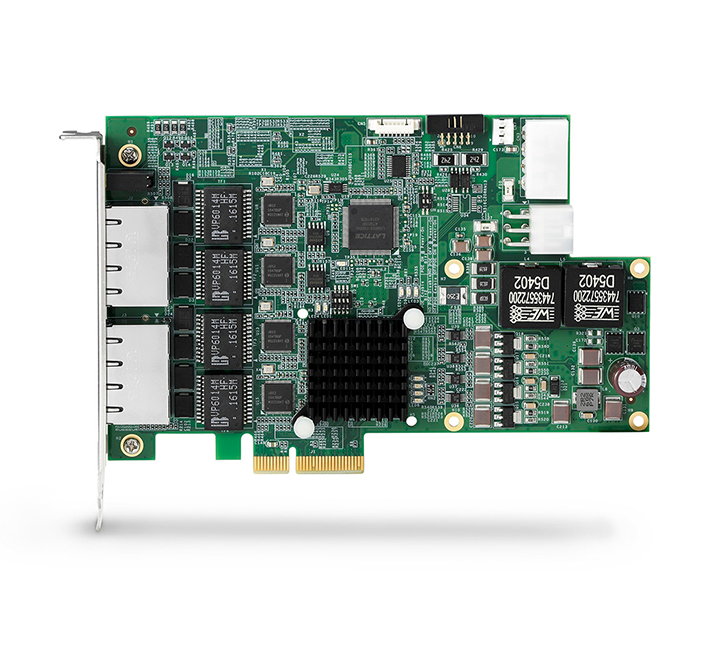

PCIe-GIE72/74 PRO

● Compatible with PCI Express ® x4
● Supports 2/4 independent Gigabit Ethernet interfaces
● Supports IEEE 802.3at Power over Ethernet (PoE+)
● PoE protection and automatic power prediction control enhance asset protection
● Provide easy-to-use tools and APIs for PoE power management
● Multiple cards and cameras can be connected in one system
● Wide temperature operation range from 0 ℃ to+70 ℃, supporting image capture without frame loss in extreme environments
● Obtain up to 20/60/120W PoE power supply through PCIe bus/4-pin/6-pin Molex connector

Product manual download Free Access

Product Parameter
Product Details
FAQ
Video

PCIe GIE7x series
2/4-channel PCI Express ® GigE Vision PoE+image capture card, supporting PoE power management and protection,

Hardware ToE and software license management

Product highlights

1. The advantages of machine vision ensure that image acquisition does not lose frames
Multiple PCIe GIE7x series cards can be installed in a single system without consuming BIOS I/O resources, enabling machine vision image acquisition without frame loss for multiple cards and single systems. Supports wide temperature operation, can be integrated with fanless computers for industrial automation applications, and deployed in harsh environments.
2. Unique comprehensive PoE protection ensures asset security
The unique comprehensive PoE protection design can provide overvoltage protection for cards and cameras. Automatic power budget control can automatically adjust the PoE interface power supply to avoid equipment damage.
3. Intelligent PoE management
Easy to use tools and APIs provide real-time monitoring and control of PoE status, reduce maintenance costs, and predict potential failures in advance. At the same time, priority selection of PoE power supply and PoE based power on/off support more application requirements.

Recommended Product

PCIe-U304

The PCIe-U300 series provides a maximum current of 5V and 1500mA per port for external USB3 Vision industrial cameras. To ensure industrial grade high bandwidth performance for each port, four independent Fresco FL1100 USB 3.1 Gen 1 main control chips and PCI Express x4 Gen2 interfaces enable each USB port to achieve up to 5Gbps bandwidth when operating four ports simultaneously. In addition, software programming is also supported to control the power on/off of each port for fault recovery operations.

Explore Details

PCIe-U308

The PCIe U300 series is a PCI Express x4 Gen3 USB3 Vision image capture card that supports 4/8/12 USB 3.1 Gen 1 ports and can be used for connecting multiple USB3 Vision devices, with data transfer speeds of up to 5 Gb/s. The PCIe-U300 series provides a maximum current of 5V and 1500mA per port for external USB3 Vision industrial cameras. To ensure industrial grade high bandwidth performance for each port, four independent Fresco FL1100 USB 3.1 Gen 1 main control chips and PCI Express x4 Gen2 interfaces enable each USB port to achieve up to 5Gbps bandwidth when operating four ports simultaneously. In addition, software programming is also supported to control the power on/off of each port for fault recovery operations. The PCIe-U300 series brings great convenience to devices with USB 3.0 interfaces, suitable for machine vision, factory automation, quality assurance, logistics, medicine, safety, and traffic monitoring applications.

Explore Details

PCIe-U312

Explore Details
